Plastic Injection Mold Making Process

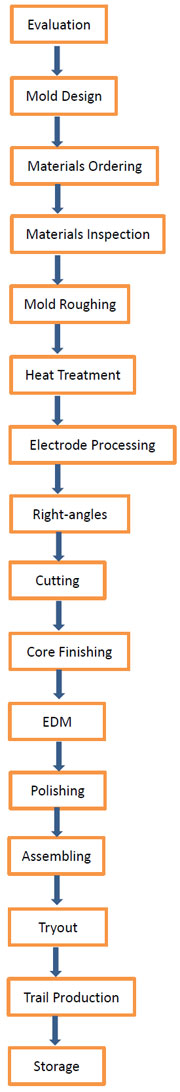

The basic injection mold making process in our company:
1. Products design department provides product information to injection mold design department, injection mold designers complete cost analysis in two working days, and provide to R&D manager.
2. R&D department release "Mold Making Apply" to plastic injection mold design department after confirmed the project.
3. Injection mold designers organize relevant personnel to review the project base on the product information, including product structure, mold structure, cooling system, runner, slag, venting, etc.Mold Making Process
4. After evaluation, injection mold designers begin to design the plastic injection mold, including 3D drawing correction, 3D parting, mold parts assembly drawing, EDM drawing, electrode drawing etc., and organize relevant personnel to evaluate those drawings, then issue to plastic injection mold making department.
5. Injection mold makers evaluate and study the drawings, and order mold materials if there is no objection, otherwise, communicate with the plastic injection mold designers.
6. Injection mold makers inspect the mold materials in time after the materials arrive tofactory, and arrange technicians to do locksmith works, include turning, grinding, milling, screw holes, water carrying hole, center hole, CNC roughing, etc. The technicians should pay attention to the precision of each right-angle sides, avoid empty of the center hole and each production base, roughing margin etc. Then outsource each mold part to heat treatment promptly.
7. After heat processing, plastic injection mold maker must detect its hardness and metallurgical analysis. Generally, the core hardness 46-50HRC, for uniform distribution of 9 points, requiring its hardness differ is less than 1HRC. Metallurgical analysis should be done for the injection mold core prior to processing to make sure there is no segregation, scars, etc.
8. Electrode processing, there are fine and rough processing, fine male spark is 0.08, rough male spark is 0.2 (subject to the actual situation). Be sure to pay attention to each processing benchmarks, and detect electrodes after processing finished.
9. Before finishing, must make right angle for the mold core, the vertical degree should less than 0.02 mm, finish degree 1.6.
10. For line cutting, please note that all parts' base, enlarge 0.02mm for the insert hole and center hole as tolerance clearance, for non-standard thimble, the tolerance clearance is 0.04mm of the actual thimble size.
11. Mold core finishing, shall base on the benchmarks after making right-angles, typically leaving 0.02 mm die as a margin (without considering tool wearing).
12. EDM processing, process according to the drawings' size, fine 0.08, rough 0.2 (subject to the actual situation), pay attention to the benchmarks in processing, for sparks processing, the leave a margin of 0.03-0.05 mm.
13. The runner surface must be polished to achieve 6 or 7 finishing, the surface does not allow spark or knife pattern exists.
14. Before assembling the plastic injection mold, the mold maker must do a comprehensive inspection for all related parts to make sure everything is in a good condition, and do cleaning and anti-rust treatment. Then fill "Mold Inspection Summary" form.
15. In tryout, injection mold designers, plastic mold makers and die casting workshop personal should go to the site, making analysis and solution of abnormal in casting tryout, improving the plastic injection mold and die casting process according to the results, and fill "Mold Tryout Report".
16. By 100-150 cycle time, the tryout products are defect-free, the production department make production schedule, the technicians track the production processes, and feedback yield to the plastic injection mold making department.
17. After tryout, plastic injection mold making department apply for storage with the forms of "Mold Making Apply" and "Mold Making Inspection".
Custom injection mold making for US companies
70% injection molds made by DOWELL MOLD are exported to US or European companies, these injection molds are usually required to be SPI Class 101, guaranteed 1 million cycles or more, mold standard apply to US or Euro location standard so it can be easily operated and maintained.

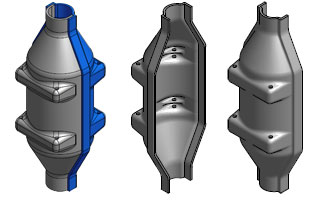

Custom plastic parts design sketch
Comparing with stay-in-house-molding mold, the export mold requires a higher capability to mold maker on not just how to make the injection molds but also how to work with US companies. Here we share with you a custom mold making project we have done in our factory, we are sure there would be much more on somewhere we can do much better and achieve much more satisfaction, we summarize it, look back and move forward for better and better customized mold projects made in China by DOWELL MOLD.
